The connection between the engine loom and the chassis loom is easy to identify and simple to connect, but before I made this connection I tried ensure all the wires are routed as cleanly as possible.

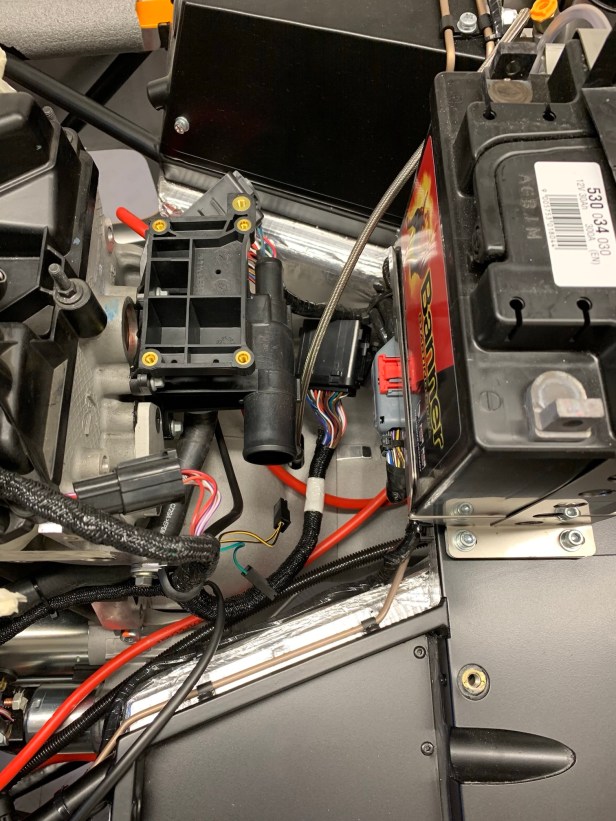

  • Route wires as required
  • Connect Engine loom

I removed a few factory tie wraps and replaced them when I had all the wired where I wanted them.

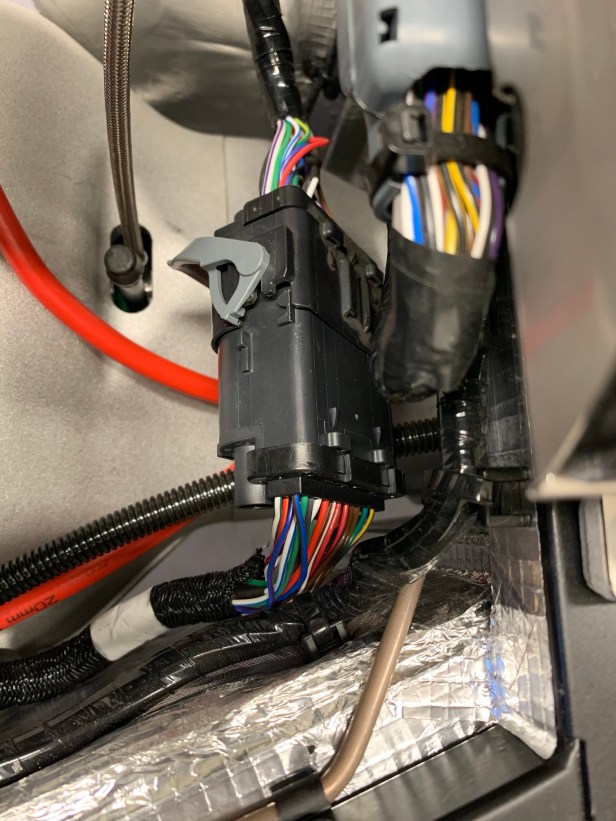

  • Engine and Chassis loom connected, note factory tie wraps removed and replaced as needed

Finally I connected the starter motor, the factory marked the stater wire with an S. Don’t forget your IVA nut cover.

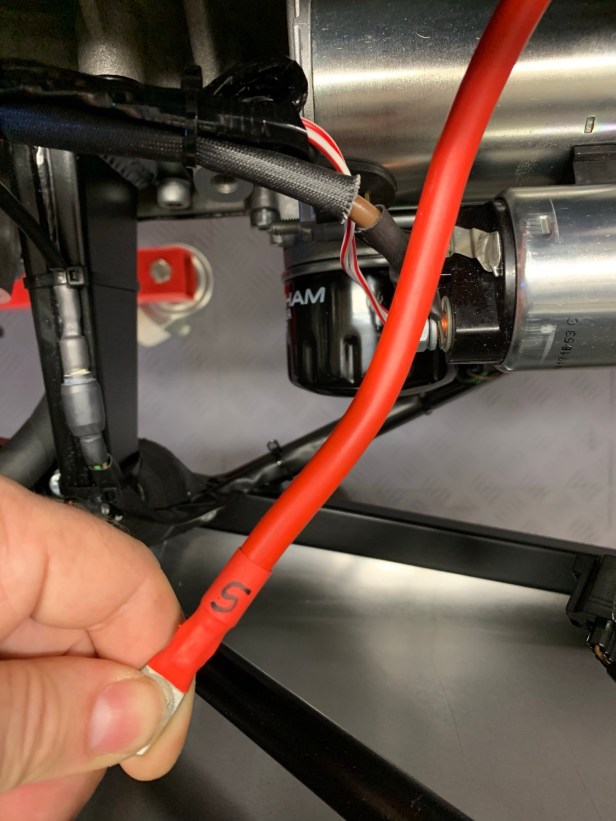

  • Starter wire has S on it

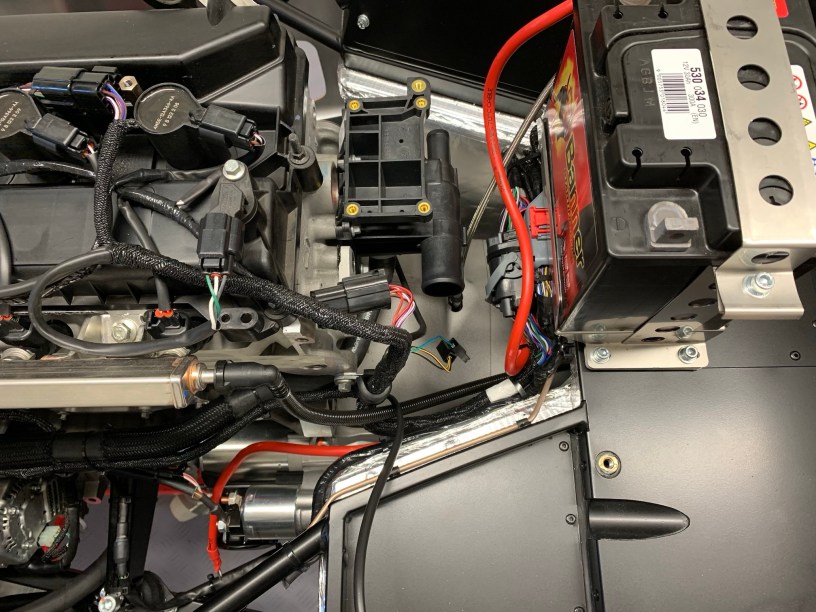

  • Starter connected
  • IVA nut cover

There is still work to be done in this area with the battery and earth connection.

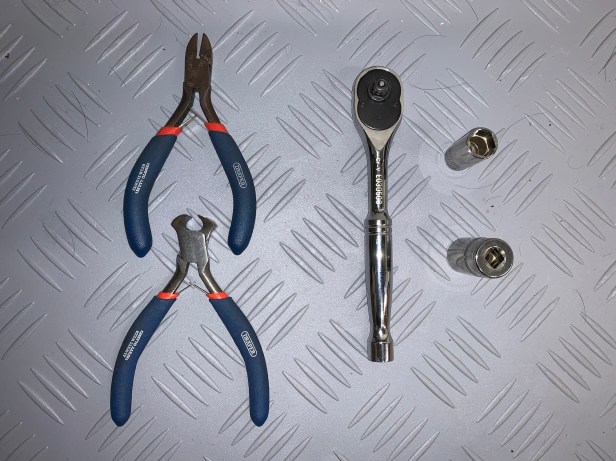

Tools Used

  • Side Cutters
  • End Cutters
  • 13mm 1/4 drive socket
  • 10mm 1/4 drive socket
  • 1/4 drive ratchet
