Before I installed the dry sump tank, I decided to refit the belt tensioner and belt back onto the engine. In hindsight I could have left this till after the plenum was reinstalled.

The tensioner is installed with three simple bolts torqued to 7Nm (from the Ford workshop manual), so I only needed 1/4” drive tools.

  • Tensioner bolts fitted loose
  • Tensioner fitted

I slipped the belt over the pulleys, leaving it off the water pump pully until I applied tension to the tensioner with a 17mm spanner. Once tension is applied, the belt can be slipped into place.

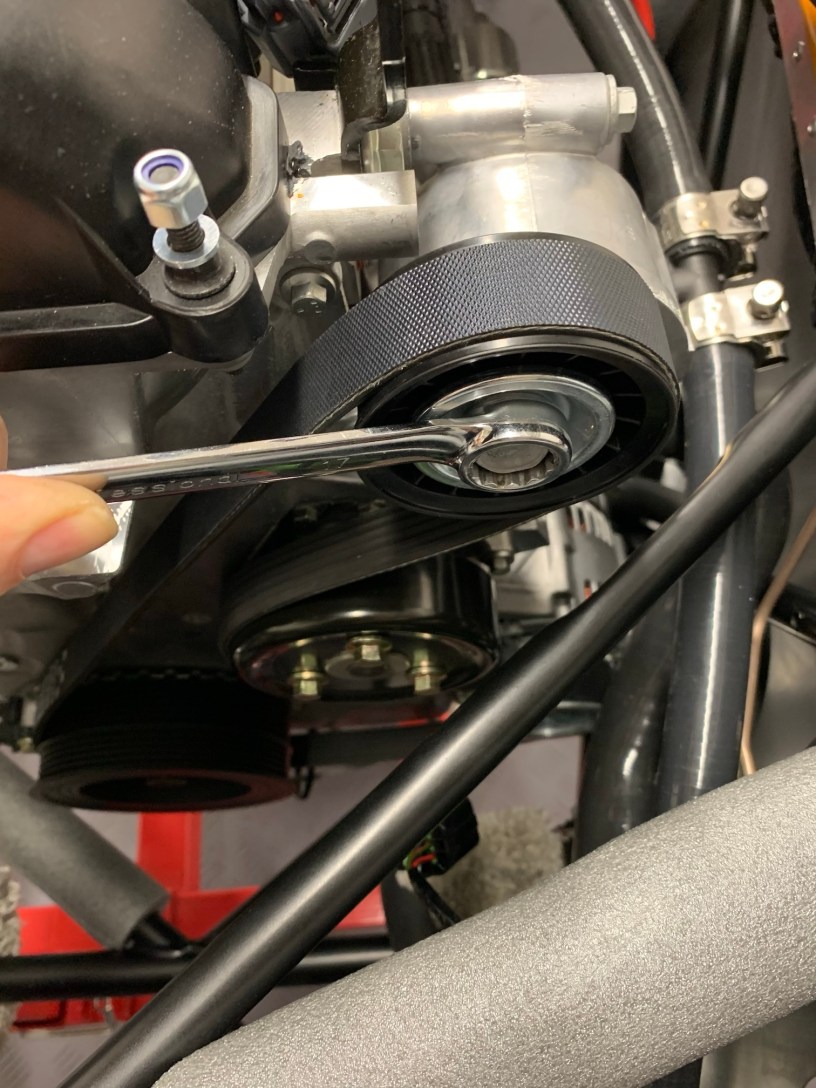

  • Belt fitting

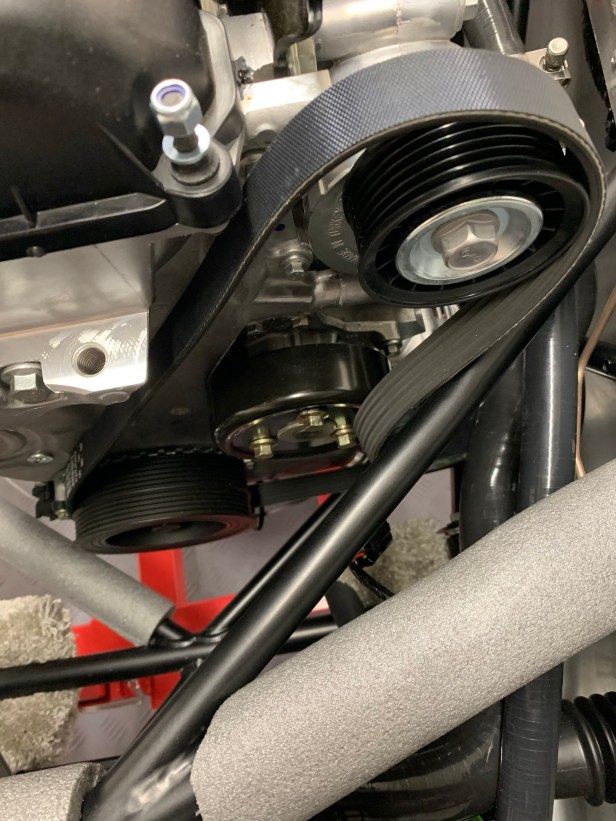

  • Belt fitted

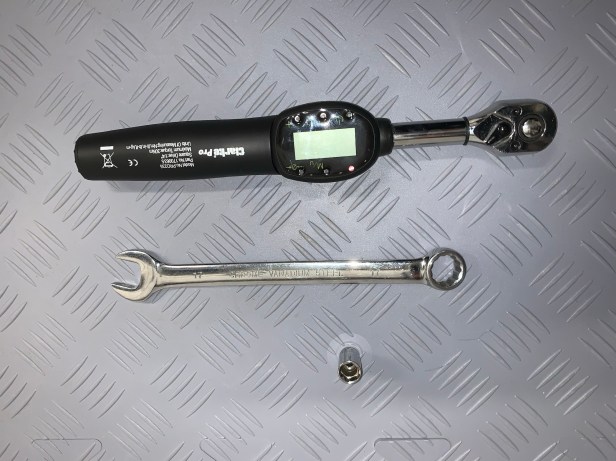

Tools used

  • 10mm 1/4” drive socket
  • 1/4” torque wrench
  • 17mm combination spanner
